Product Advantage

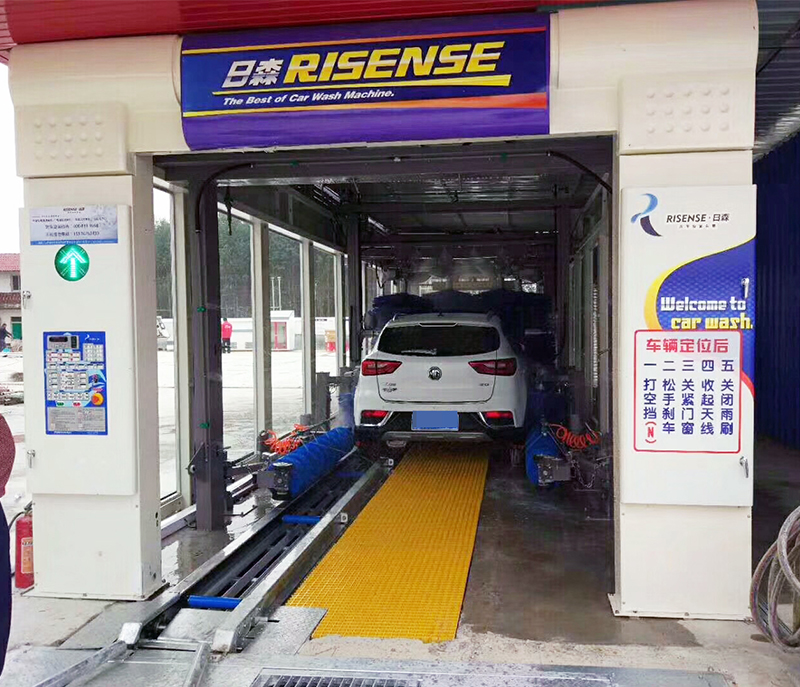

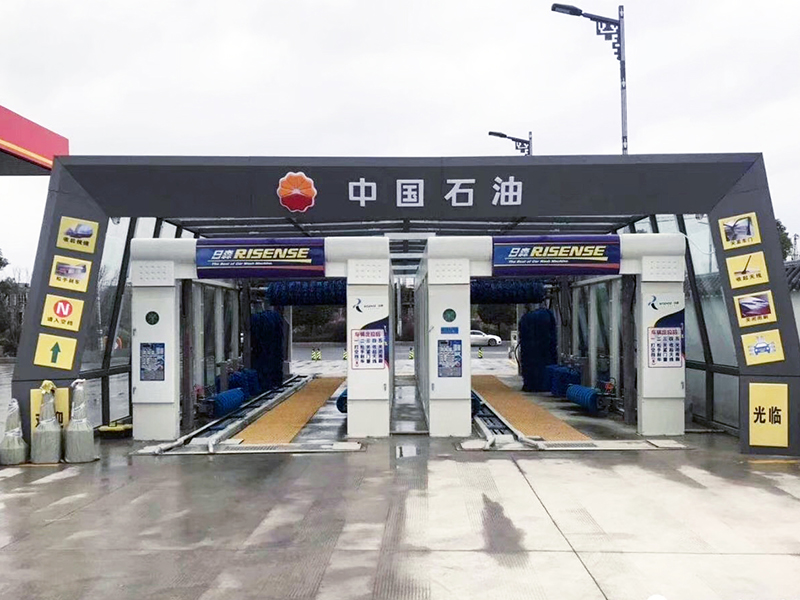

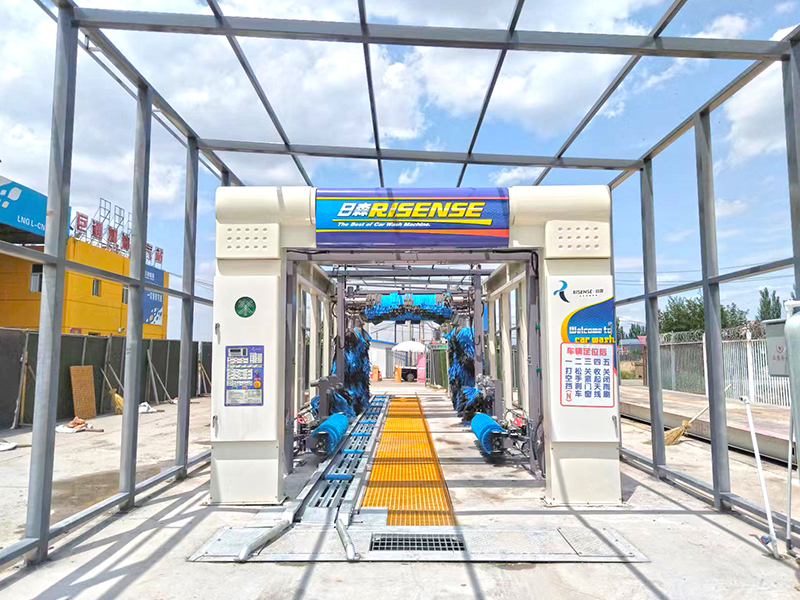

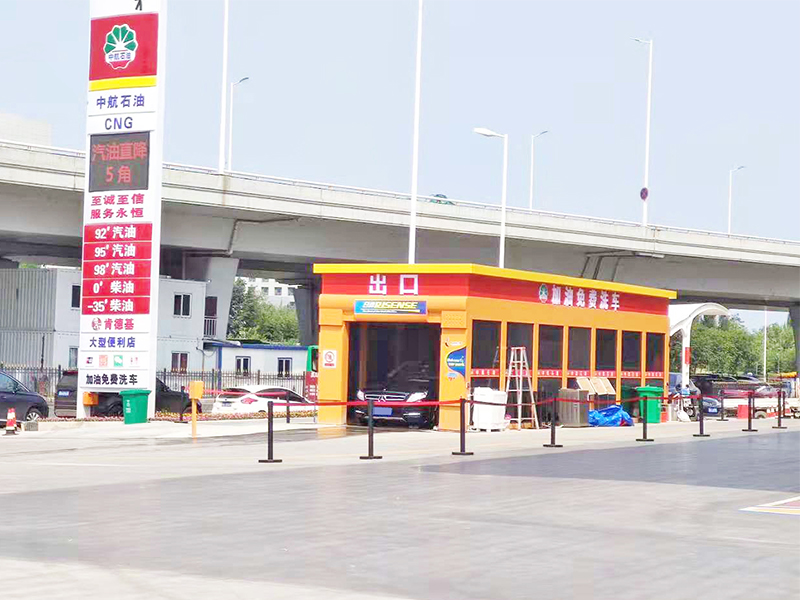

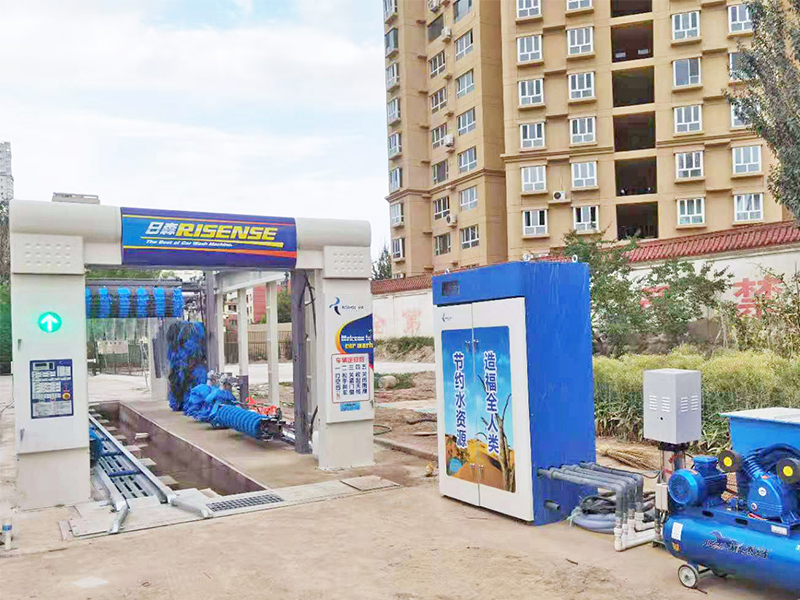

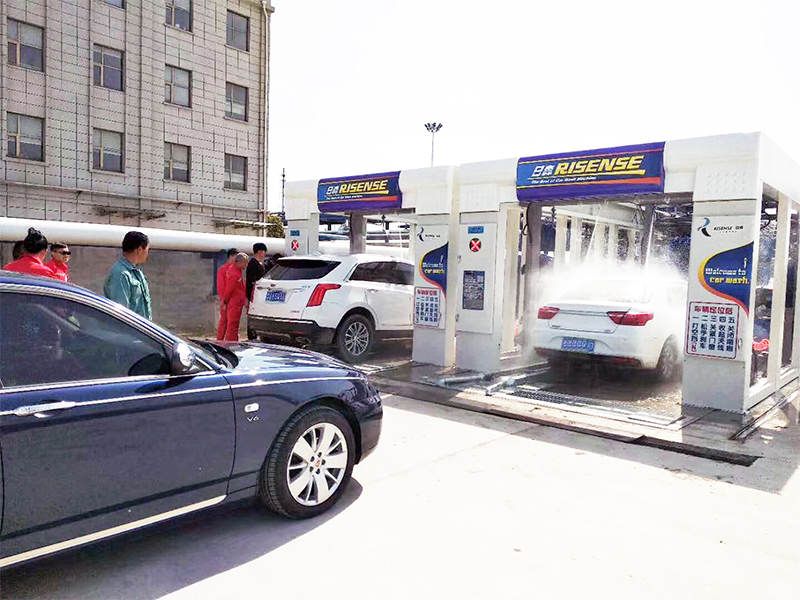

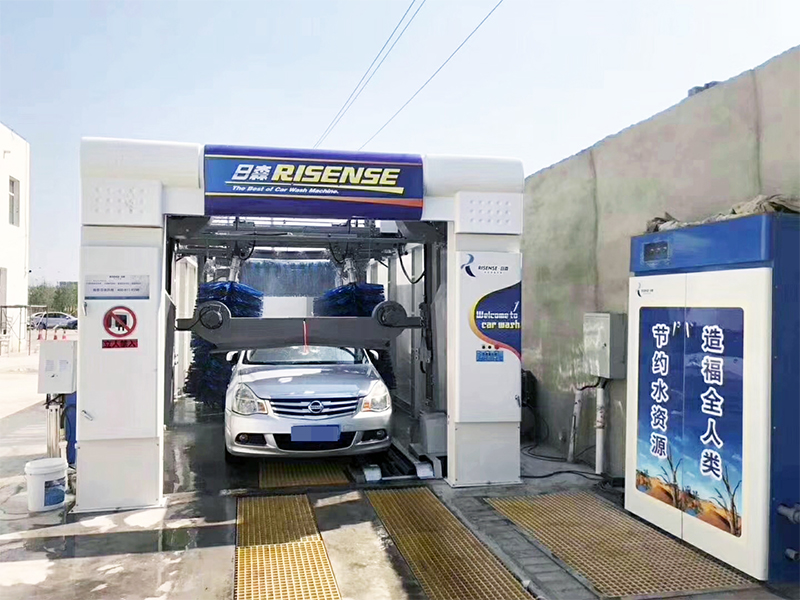

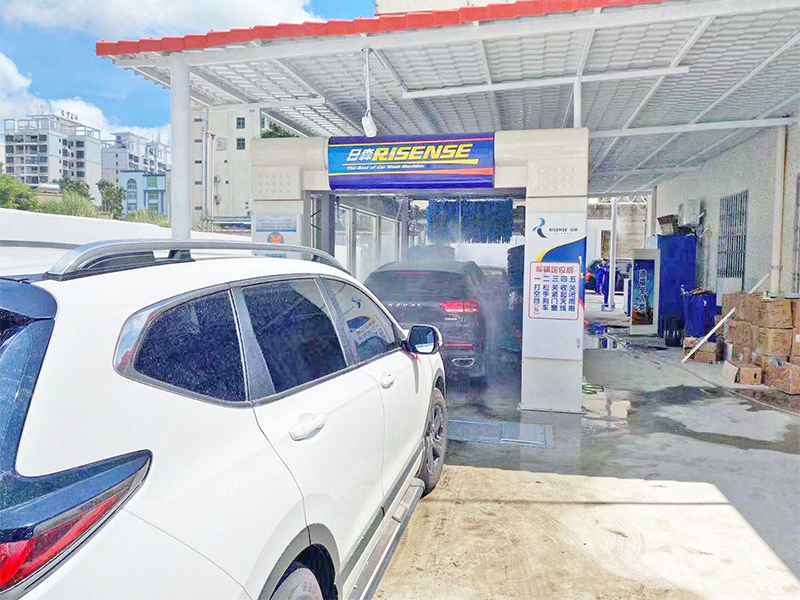

  • Tunnel car wash machine CC-692

    Excellent design Japanese full automatic PLC control system. Hot-dipped galvanized steel frame V-shaped beam+single shaped bean/double V-shaped beam

  • Tunnel car wash machine CC-692

    11 brushes(1 lifting top brush+2 horizontal brushes+4 short vertical brushes+4 long vertical brushes) Integrated guider at the entrance

  • Tunnel car wash machine CC-692

    Automatic conveyor 4 strong air dryer High pressure water system

  • Tunnel car wash machine CC-692

    Wipe-free pre-wash system Automatic shampoo proportioning system Automatic wax proportioning system

  • Tunnel car wash machine CC-692

    Full function Pre-wash---high pressure water spraying--shampoo---brush washing---weak water spraying---wax spraying---air dryer

  • Tunnel car wash machine CC-692

    More highlights Various material washing, long washing time, good washing effect. Low cost and more economical Use high-resolution sensors, PLC control system, High safety.

  • Tunnel car wash machine CC-692

    One button washing, easy to operate Automatic Liquid agent siphoning, easy to use Dry the car according to its shape with good drying effect

  • Tunnel car wash machine CC-692

    Environmental friendly, low noise Energy saving, water saving Equipped with fault identification code, easy to identify and troubleshoot

Technical Parameters

    CC-692 is the upgraded version of CC-690. 2 brushes is added on the basis of CC-690. It is the high-end tunnel car wash machine.

    It can only wash the car quickly but also wash the car continuously. It washes 45-55 cars per hour. It greatly meet the needs of the customer who has large business site and large car wash volume and the customer who needs to wash the car, at the same time, wash the wheels of the car.

    · Overall dimension13.2*3.8*3.44(m)

    · Installation size14.31*4*3.44(m)

    · Car wash speed45-55 set/hour

    · Car wash size5.3m*2.1m*2.1m(wheelbase≤3.2m)

    · VoltageAC380V50Hz(5-wire system

    · Water consumption155L/set

    · Power consumption0.6kwh/set

    · Shampoo consumption20-40ml/set

    · Wax consumption30ml/set






Company Strength

Qingdao Risense Mechatronics Co.,Ltd was founded in 2010 and is a high and new tech enterprise which sets R &D,Production, sales, service in one scale. We are specialized in manufacturing the high-end intelligent car wash machine. Now we have more than 400 staff and the workshop area of 26000 square meters. The production scale and the sales volume at home and abroad are ranked in the forefront.
