Tunnel car wash machine

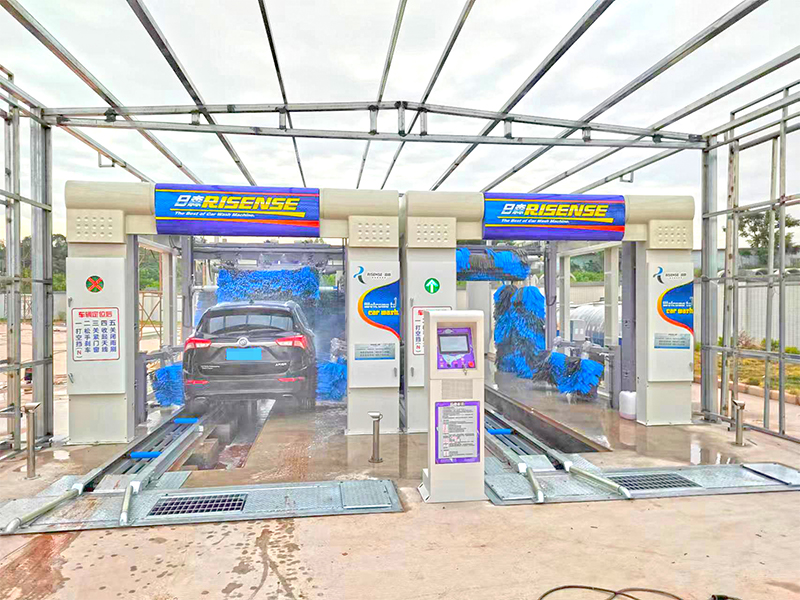

Automatic tunnel car wash machine CC-690

CC-690 is the 3rd type of car wash machine introduced from Japan.It is the standard tunnel car wash machine( it is classified into luxury type and normal type)

Get Price
Product Advantage
  • Automatic tunnel car wash machine CC-690

    Excellent design Japanese full automatic PLC control system. Hot-dipped galvanized steel frame V-shaped beam+single shaped bean/double V-shaped beam

  • Automatic tunnel car wash machine CC-690

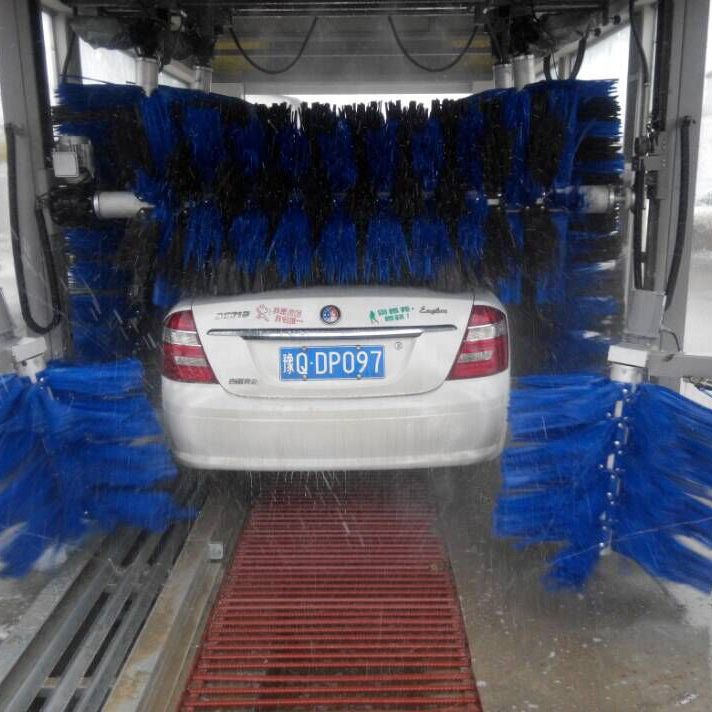

    9 brushes(1 long vertical brush+4 short vertical brushes+4 long vertical brushes) Integrated guider at the entrance Automatic conveyor

  • Automatic tunnel car wash machine CC-690

    4 strong air dryer High pressure water system Wipe-free pre-wash system

  • Automatic tunnel car wash machine CC-690

    Automatic shampoo proportioning system Automatic wax proportioning system

  • Automatic tunnel car wash machine CC-690

    Full automatic Pre-wash---high pressure water spraying--shampoo---brush washing---weak water spraying---wax spraying---air dryer

  • Automatic tunnel car wash machine CC-690

    Highlights Various material washing, long washing time, good washing effect. Low cost and more economical Use high-resolution sensors, PLC control system, High safety.

  • Automatic tunnel car wash machine CC-690

    One button washing, easy to operate Automatic Liquid agent siphoning, easy to use Dry the car according to its shape with good drying effect

  • Automatic tunnel car wash machine CC-690

    Environmental friendly, low noise Energy saving, water saving Equipped with fault identification code, easy to identify and troubleshoot

Technical Parameters


    CC-690 is the 3rd type of car wash machine introduced from Japan.It is the standard tunnel car wash machine( it is classified into luxury type and normal type)

    It can only wash the car quickly but also wash the car continuously. It washes 45-55 cars per hour. Its introduction greatly meet the needs who has very large business place with large car washing demand. Now a lot of customers who has needs to wash more than 500 cars per day use this machines.

    This equipment is strong and durable, the appearance is loved by the customer at home and abroad. Its occupying area is relatively small and it has very strong adaptability to the venue. Its performance is excellent in various aspects. It is widely installed and used at home and abroad.


    · Overall dimension：9.5*3.8*3.44（m）

    · Installation size：11.88*4（m）

    · Car wash speed：45-55 set/hour

    · Car wash size：5.3m*2.1m*2.1m(wheelbase≤3.2m)

    · Voltage：AC380V50Hz（5 wire system）

    · Water consumption：150L/set

    · Power consumption：0.6kwh/set

    · Shampoo consumption：20-40ml/set

    · Wax consumption：30ml/set
