Product Advantage

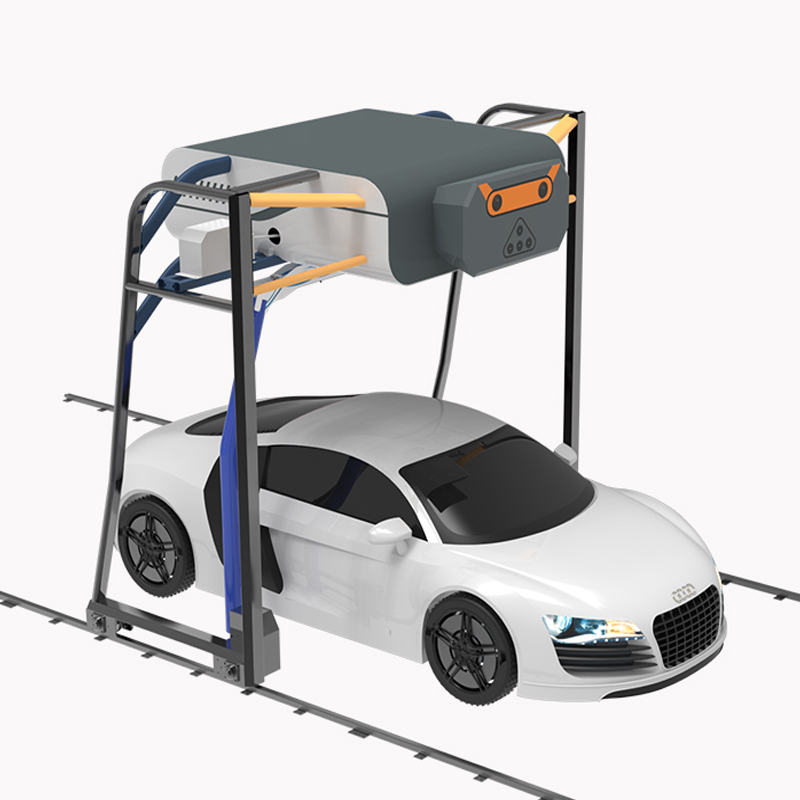

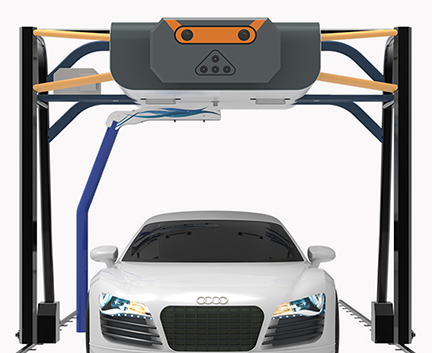

  • Rollover type single arm touchless car wash machine

    Excellent design 1. 1.Streamlined appearance, integrated sealing plate, more beautiful and durable. 2.3.The car is sprayed by high pressure water in 360 degree. The swing arm rotates 360 degree around the body of the car so that the blind spots can be cleaned comprehensively. 4.5.Multiplexing High pressure water, wipe-free liquid. The diversity of institutional utilization and functions is taken into full consideration to achieving intensification and efficiency. 5. Traffic light indicator: The traffic light indicates whether the vehicle has been cleaned and can be driven away which is simple and easy to understand. rollover+single swing arm Combine the stability of rollover type car washing machines with the advantages of precise and flexible swing arm cleaning.

  • Rollover type single arm touchless car wash machine

    Various function Chassis spray, wipe-free liquid spray, single arm high pressure spraying, rich foam spray, wax coating, automatic drying.

  • Rollover type single arm touchless car wash machine

    More highlights 1. car wash process - bottom spray 35-70kg high-pressure water can effectively remove sediment from the wheels, bottom of both sides of the vehicle body, and chassis. 2. Wipe free liquid: The single arm sprays wipe-free liquid to to activate dirt and loosen attachments. 3. The "7-shaped" type swing arm high pressure water strengthens the cleaning of the front, rear, and rearview mirrors to enhance the washing effect.

  • Rollover type single arm touchless car wash machine

    4. . High foam car wash solution further removes activated and loose dirt. The thick foam can wrap the car body in all directions to make preparations for non-contact cleaning. 5. Wax coating: The wax hydrophobic wax can effectively drive away residual water after high-pressure water washing and can form a protective film on the surface of the car paint to improve the brightness of the paint. 6.Strong air drying: 2 swing air dryer is equipped on the top so the drying efficiency of the whole car is greatly improved and the better drying effect is achieved. 7.Unattended: The machine can be started by scanning the QR code. The machine can operate unattendedly so 24 hour service can be provided.

Technical Parameters

Product

Rollover type single arm

Touchless car wash machineHP-210 )

Rollover type single arm

Touchless car wash machineHP-211 )

Rollover type single arm

Touchless car wash machineHP-212 )

Overall dimension(mm)

1650*3100*2900mm

Conveyor belt length 8000

1650*3100*2900mm

Conveyor belt length 8000

2100*3100*2900mm

Conveyor belt length 8000

Installation size(mm)

9000*3200*3000mmthe machine room is not included

The machine room size: 2500*1600*2000mm

Voltage

3 phase  380V 50HZ

3 phase 380V 50HZ

3 phase  380V 50HZ

Power

9.5KW  maximum while working 9.5kw

17.5KW maximum while working 10kw

28KW  maximum while working 20.5kw

Air source requirement

0.6-0.7MPa

0.6-0.7MPa

0.6-0.7MPa

Cars to be washed

Sedans, Vans, Commercial vehicles and other model with less than 7 seats

Car washing size (mm)

5300*2100*2100mm

Car wash speed

Fine wash 6min/car

Fine wash 6min/car

Fine wash 6min/car

Water consumption

About 300L/car

About 300L/car

About 330L/car

Power consumption

About 0.3-0.4KWh per car

About 0.45-0.55KWh/car

About 0.85-0.95KWh/car

Shampoo consumption

About 25-60ML/car

About 25-60ML/car

About 25-60ML/car

Wipe free liquid

About 20-50ML/car

About 20-50ML/car

About 20-50ML/car

Wax consumption

/

About 20-40ML/car

About 20-40ML/car

Intelligent device data

Management, inspection, and operation

Management, inspection, and operation

Management, inspection, and operation

Fault self check

Available

Available

Available
