Product Advantage

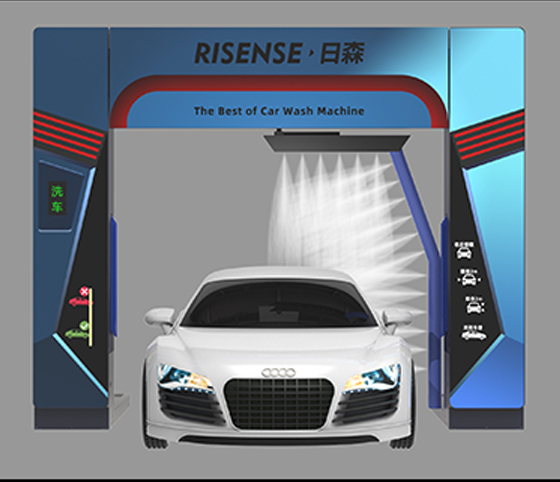

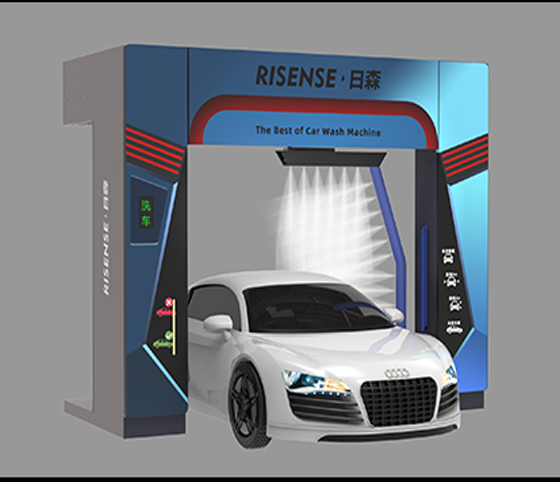

  • rollover type touchless car wash machine HP-270

    Excellent design Streamlined appearance: Integrated sealing frame with high aesthetics and durability. Car position indicator panel: It can tell you the suitable position where the car can be stopped. Multi-functional pipeline: High-pressure water and rinse-free shampoo is integrated in the same spray system. The compact and multi-functional design delivers optimal efficiency. Car washing status panel: The car washing light will flicker to indicate it is working. 6.CAE computer-aided simulation design. The nozzles angles and position is reasonably arranged which can avoid water flow collision which weakens cleaning effect. Swing and single arm: The flexibility of single arm car washing system and the stability of swing arm vehicle washing machine are perfectly jointed.

  • rollover type touchless car wash machine HP-270

    various functions Chassis spraying, wipe-free shampoo, single arm high pressure water spray, rich foam car wash shampoo, wax coating, strong swing air drying+ fixed air drying

  • rollover type touchless car wash machine HP-270

    More Brightness Bottom water sprayer The bottom water sprayer uses 90bar high pressure water to clean wheels, rims and chassis gently and effectively, removing ingrained dirt. Wipe-free shampoo: the single arm spraying the wipe-free shampoo, activate dirt and loosen the attached stains. 7-shaped single arm high pressure water: it could enhance the cleaning of the rear, the front and the rearview mirror to improve the washing effect.

  • rollover type touchless car wash machine HP-270

    High foam car wash fluid: further remove the activated and loose dirt, wrap the car body with thick foam in all directions, and prepare for non-contact cleaning. Wax coating: Hydrophobic wax effectively drives away residual water after high-pressure water washing, and forms a protective film on the surface of the car paint, improving the brightness of the car paint. Strong air drying: swinging type top air dryer+fixed side air dryer, greatly improving the drying rate of the entire vehicle and achieving better drying effect.

Technical Parameters


HP-270 is the latest version of rollover type touchless car wash machine developed and produced by Risense. The appearance is full of technology and is very solid and durable. It is the combination of the rollover walking type cleaning and single swing arm cleaning. It is has higher value for money. The swing air dryer on the top and side air drying ensures good drying effect. The machine can be made to be unattended and run around the clock.


HP-270

Rollover type single arm touchess car wash machine(economical)

Rollover type single arm touchless car wash machine

(luxury)

Overall dimension

1600*3600*2900(mm)

Orbits length 9500mm

1600*3600*2800(mm)

Orbits length9500mm

Installation size(mm)

10500*4600*3600mm

10500*4600*3600mm

Equipment room size 2500*1600*2000mm

Equipment room size 2500*1600*2000mm

Voltage

3 Phase 380V 50HZ

3 phase  380V 50HZ

Power

33kw

35kw

Air requirement

0.6-0.7MPa

0.6-0.7MPa

Available car to wash

car/jeep/coach with not more than 7 seats

car/jeep/coach with not more than 7 seats

Moving range

5300mm*2100mm*2100mm

5300*2100*2100mm

Car was capacity

Fine wash 6min/set

Fine wash 6min/set

Water consumption

165L/set

165L/set

Power consumption

0.65-0.75KWh/ set

0.65-0.75KWh/set

Shampoo consumption

25-60ML/ set

25-60ML/set

Touch-free automobile detergent consumption

20-50ML/set

20-50ML/set

Wax consumption

20-40ML/set

20-40ML/set

Intelligent device data

Management, checking, running

Management, checking, running

Fault self check



Available

Available



Company Strength

Qingdao Risense Mechatronics Co.,Ltd was founded in 2010 and is a high and new tech enterprise which sets R &D,Production, sales, service in one scale. We are specialized in manufacturing the high-end intelligent car wash machine. Now we have more than 400 staff and the workshop area of 26000 square meters. The production scale and the sales volume at home and abroad are ranked in the forefront.
