Product Advantage

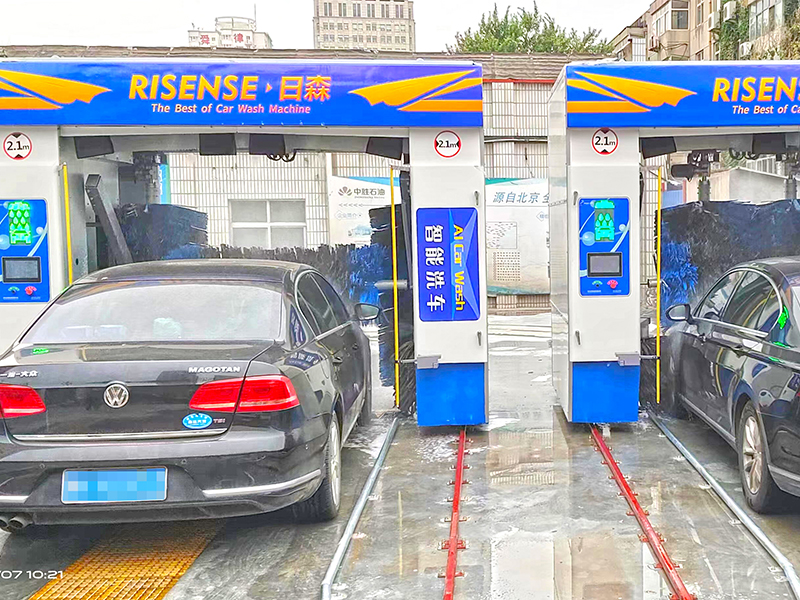

  • rollover car wash machine CF-340

    Excellent design Adopt full automatic MCU control system which has faster computation speed, lower failure rate and can be upgraded remotely. high-precise laser cutting of ZFC alloy bending frame structure, overall high operating accuracy, firm and safe. 5 brushes(1 swing arm top brush+2 short vertical brushes+2 long vertical brushes Swing arm type balanced structure top brush, more precise and rapid cleaning operation

  • rollover car wash machine CF-340

    Both the long and short vertical brushes can be tilted to fit the car body for cleaning Automatic shampoo proportioning system Automatic wax proportioning system

  • rollover car wash machine CF-340

    The touch screen with user-friendly interface for easy selection of cleaning models, maintenance systems and viewing daily data.

  • rollover car wash machine CF-340

    Various function Pre-wash---shampoo--brush washing----water spraying---wax spraying---air drying

  • rollover car wash machine CF-340

    More highlights Full automatic washing with good cleaning effect Low cost, more economical

  • rollover car wash machine CF-340

    The suitable car washing model can be selected by scanning QR code by cell phone. Follow the prompts to make good preparation before washing, start washing the car, and easy to operate.

  • rollover car wash machine CF-340

    The liquid agent siphon ratio is simple to use. 4 groups of fixed air dryer with large air volume and good drying effect.

  • rollover car wash machine CF-340

    Equipped with fault identification code, easy to identify and troubleshoot

Technical Parameters

CF-340 is the independently developed and produced rollover car wash machine with super cost-effectiveness. The frame is made of ZCF alloy bending frame which has very strong corrosive resistance. 4 groups of fixed air dryer with very large air volume and excellent air drying effect.


· Overall dimension2.61*3.6*2.815(m)

· Installation size10.87*4.3*3.2(m)

· Car wash speed: one rollover 2ˊ58〞/two rollover 4ˊ48〞

· Car wash size5.2*2.1(width outside mirror*2.1(m)

· VoltageAC380V 50Hz

· Water consumption75-115L/set

· Power consumption0.3-0.5 kwh/set

· Shampoo consumption10ml/set

· Wax consumption15ml/set
